Steel Wire Rope ROPETEX S42 PVC

Ropetex
  • Not for lifting
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S42 is a galvanized rope equipped with a Fibre Core (FC) and has a PVC coating. It can be used for various applications such as locking rope, signaling devices, etc but not for lifting. lt's most used in small diameters up to 8 mm.

Available with transparent, matt black or a matt Red (RAL 3020) PVC coating.

The PVC coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

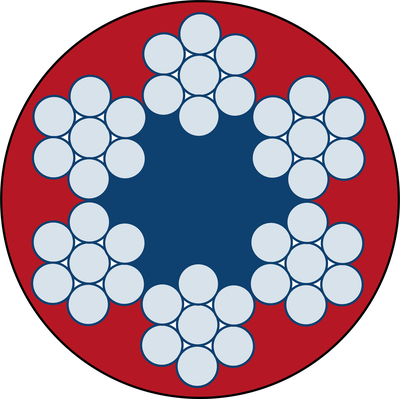

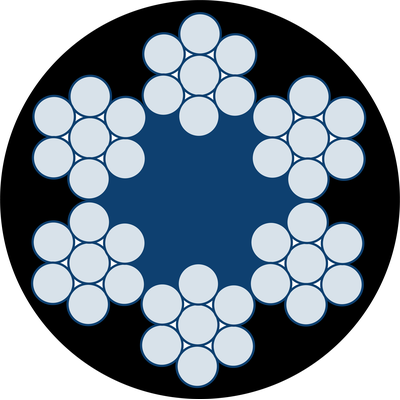

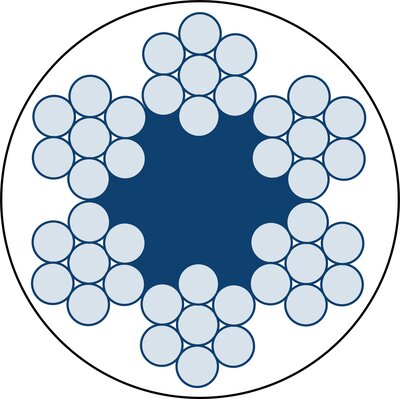

  • Rope construction: 6x7 FC
  • Marking: According to standard
  • Temperature range: -30°C up to +70°C
  • Standard: EN 12385-4
    except from coating
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,47
  • General use Wire for general use
Steel Wire Rope ROPETEX S42 PVC
Steel Wire Rope ROPETEX S42 PVC
Steel Wire Rope ROPETEX S42 PVC
Part Code Rope diameter
mm		 Inner diameter
mm		 Tensile strength
N/mm²		 Steel area
mm²		 Min. breaking force
kN		 Colour Weight
kg/100m
105130300200010 3 2 1 770 1,48 2,35 transparent 2,1
105130400200010 4 2 1 770 1,48 2,35 transparent 2,7
105130400300014 4 3 1 770 1,48 5,29 Black 4,1
105130400300010 4 3 1 770 1,48 5,29 transparent 4,1
105130400300012 4 3 1 770 1,48 5,29 Red 4,1
105130500300010 5 3 1 770 3,32 5,29 transparent 5,3
105130500300012 5 3 1 770 2,32 5,29 Red 5,3
105130500400010 5 4 1 770 3,32 9,4 transparent 6,9
105130050040012 5 4 1 770 2,32 9,4 Red 6,9
105130600400010 6 4 1 770 9,23 9,4 transparent 8,3
105130600500010 6 5 1 770 9,23 14,7 transparent 10
105130700500010 7 5 1 770 9,23 14,7 transparent 12,1
105130800600010 8 6 1 770 13,3 21,2 transparent 15,2
