Bow Shackle POWERTEX PBSP

Powertex
  • Cr6+ Free

Bow type shackle PBSP is a high quality shackle intended for use in demanding environments.

It is supplied with a screw pin for quick and easy opening.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVA Class 2, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and screw pins marked with batch number for traceability
  • Larger sizes equipped with arrows to indicate 45 degrees to vertical
  • Raised pad for dedicated and easy individual ID (3,25 t and up)
  • The bow is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including screw pins and nuts are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Screw pins are additionally painted in blue and red for quick and easy detection as  original POWERTEX parts
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with alloy screw pin.
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized. Bolt additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6

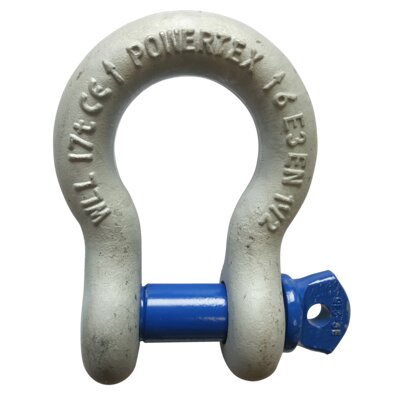

Bow Shackle POWERTEX PBSP – Screw Pin front

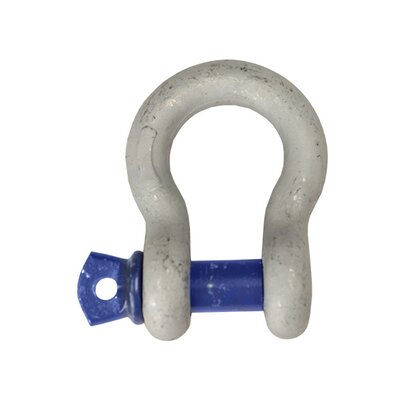

Bow Shackle POWERTEX PBSP – Screw Pin back

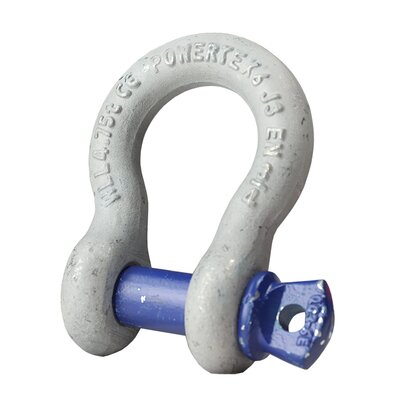

Bow Shackle POWERTEX PBSP – Screw Pin side

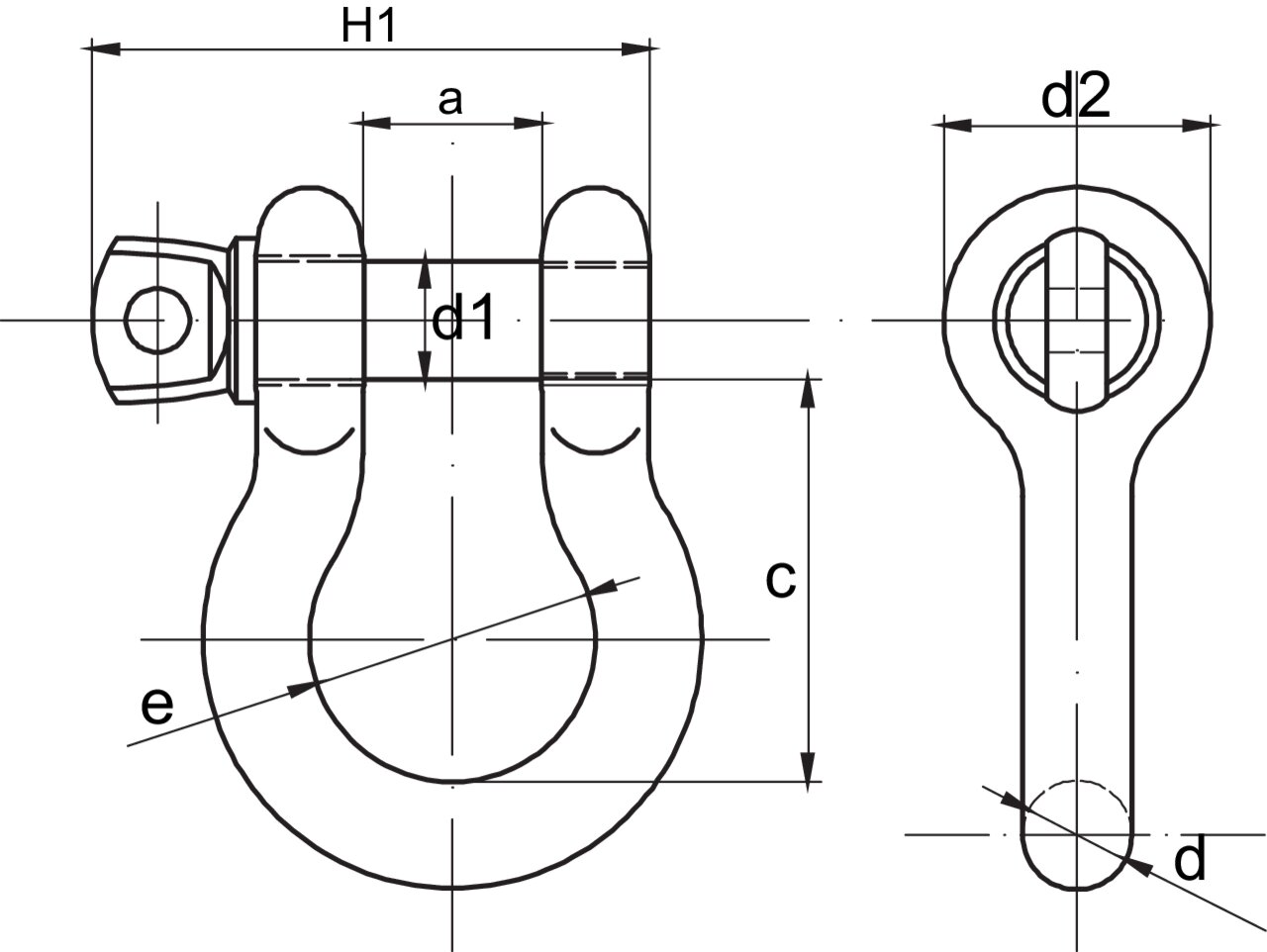

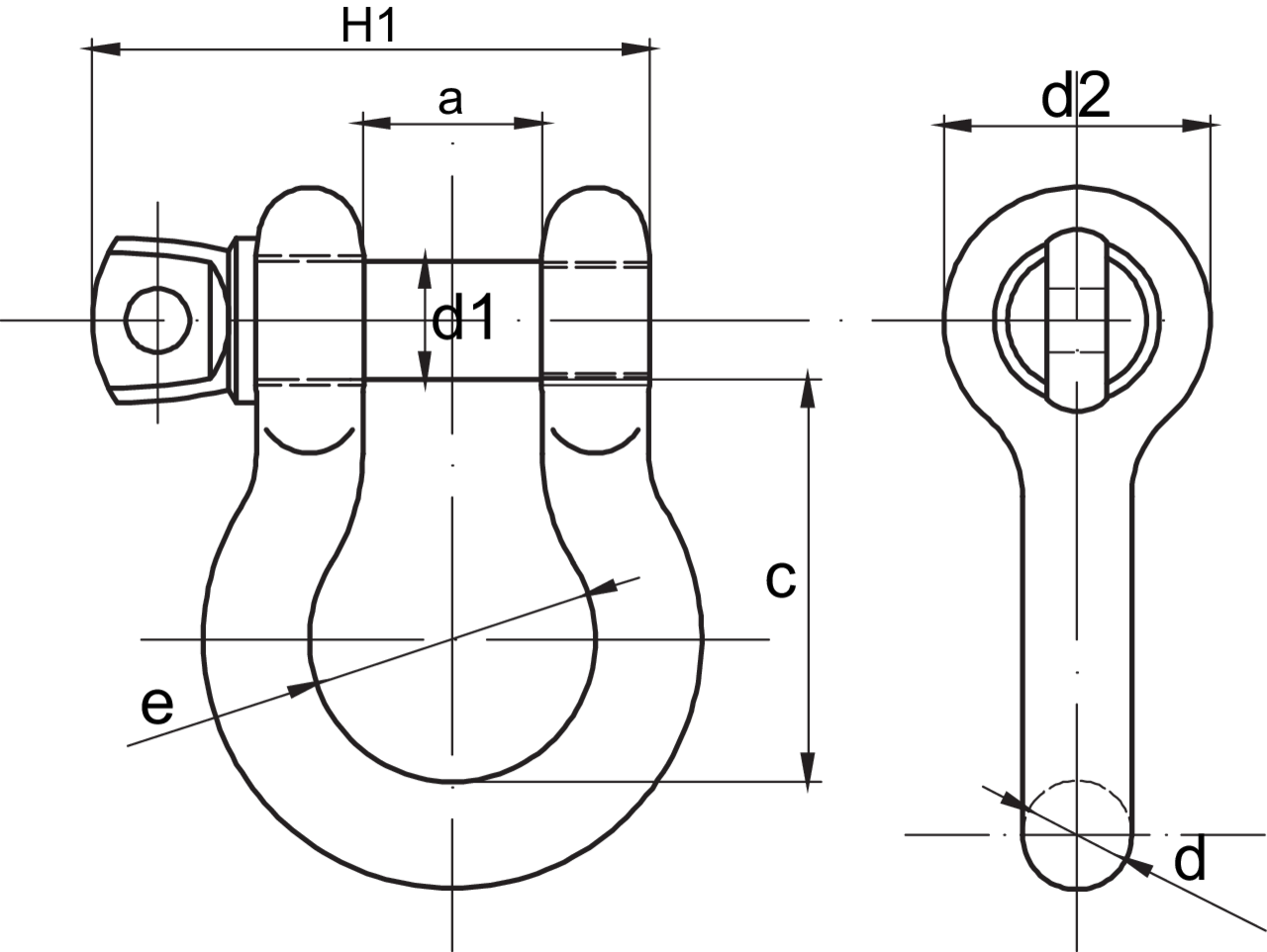

Bow Shackle POWERTEX PBSP measurements Drawing bow shackle
Part Code Code WLL
ton		 Nominal size
In.		 Pin Ø d1 a*
mm		 c*
mm		 d
mm		 d2
mm		 e
mm		 H1
mm		 Weight
kg		 CAD
11.31PBSP00033 1331 0,33 3/16 6,3 10 22,6 5 14,5 15,5 29 0,026
11.31PBSP00050 1332 0,5 1/4 8 13 29 6,5 17,5 20 38 0,048
11.31PBSP00075 1333 0,75 5/16 9,5 13,5 31 8 21 21,5 42,5 0,082
11.31PBSP00100 1334 1 3/8 11,2 17 36,5 10 25 26,2 51,5 0,15
11.31PBSP00150 1335 1,5 7/16 12,7 18,5 42,9 11,3 27 29,5 58 0,2
11.31PBSP00200 1336 2 1/2 15,8 20,6 47,75 12,7 30,5 33,3 67 0,3
11.31PBSP00325 1337 3,25 5/8 18,6 27 60 16 40 43 85 0,65
11.31PBSP00475 1338 4,75 3/4 22 32 71,5 19 48 51 98,5 1,01
11.31PBSP00650 1339 6,5 7/8 25 37 84,5 22 54 58 114 1,5
11.31PBSP00850 1340 8,5 1 28 43,5 96,25 26,5 60 68,5 129,5 2,25
11.31PBSP00950 1341 9,5 1-1/8 32 48 109 29 68 75 144 3,25
11.31PBSP01200 1342 12 1-1/4 35 53 120,5 32 76 84 157 4,45
11.31PBSP01350 1343 13,5 1-3/8 38 59 134 35 84 94 171 5,95
11.31PBSP01700 1344 17 1-1/2 42 62 148,5 38 92 99 186 7,72
11.31PBSP02500 1345 25 1-3/4 50 75 178 45 106 128 227 12,64
11.31PBSP03500 1346 35 2 55 84 197,5 52 122 148 253 18,72
11.31PBSP05500 1347 55 2-1/2 70 107 269,5 66 145 186 318 37
*Tolerance: +/- 5%
