Lifting Chain Short Link Grade 10

Home / Products / POWERTEX Lifting / Lifting chain / Short Link Lifting Chain POWERTEX PSL

High quality calibrated lifting chain intended for use in demanding applications like Grade 10 chain slings. The chains are delivered in sturdy barrels or cages and can quick and easy be cut locally to fit the end-customer’s needs

Features:

Safe - each chain link is proof load tested 2,5 x WLL in the factory prior delivery
Safe - each production batch is tested to meet the min. breaking force
Ductile - Min. 20% elongation shall be achieved before failure
Accurate - each length of chain is calibrated in the factory prior delivery
Consistent – PSL chains are made in automatic chain welding machines
Compliant - the chains are made in Europe - fulfill the Machinery directive 2006/42/EC
Each barrel includes a 14 language 2.2 Certificate and Declaration of Conformity
Each chain length carries a chain tag for quick and positive identification
The barrel is marked with an info sticker that allow quick and positive identification of the chain inside

Material: Quenched and Tempered Alloy Steel of Grade 10 quality
Marking: According to standard, CE-marked, Factory symbol, Grade (10), Traceability batch marking
Temperature range: -40°C up to +200°C without reduction in WLL
Finish: Painted blue
Standard: EN 818-2
(+ 25% WLL) and ASTM A973

Safety factor: 4:1
Grade: 10

Powertex short link Grade 10/100 chain

POWERTEX Short link chain in barrel

POWERTEX chain in stock

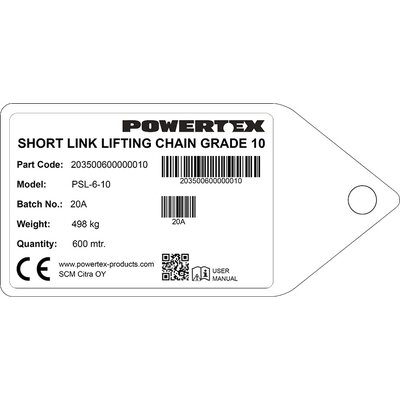

POWERTEX PSL G10 Chain marking tag

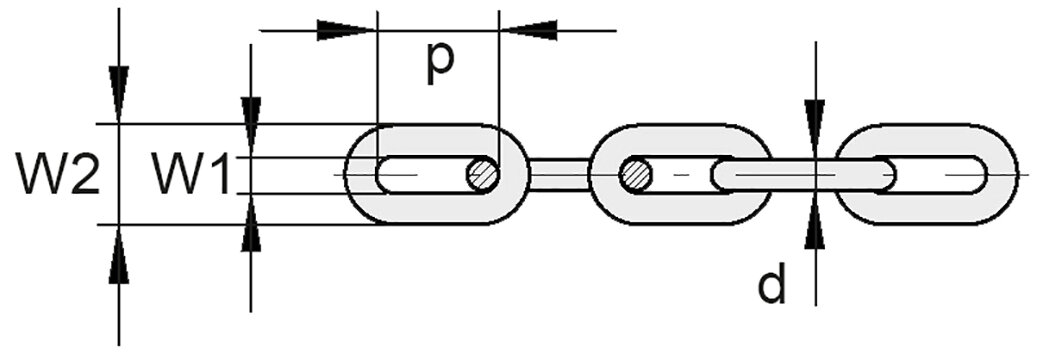

Powertex short link chain Grade 10/100 drawing

Part Code	Chain diameter mm	WLL ton	Min. breaking force kN	Pitch Length mm	Model	proof force kN	W1 min mm	W2 max mm	Weight kg/m
203500600000010	6	1,4	56,5	18	PSL-6-10	35,3	7,8	22,2	0,8
203500700000010	7	1,9	77	21	PSL-7-10	48,1	9,1	25,9	1,2
203500800000010	8	2,5	101	24	PSL-8-10	62,8	10,4	29,6	1,5
203501000000010	10	4	157	30	PSL-10-10	98,2	13,0	37,0	2,3
203501300000010	13	6,7	265	39	PSL-13-10	166	16,9	48,1	3,9
203501600000010	16	10	402	48	PSL-16-10	251	20,8	59,2	5,8
203501900000010	19	14	567	57	PSL-19-10	354	24,7	70,3	8,4
203502000000010	20	16	628	60	PSL-20-10	393	26,0	74,0	8,9
203502200000010	22	19	760	66	PSL-22-10	475	28,6	81,4	11,4
203502600000010	26	26,5	1 060	78	PSL-26-10	664	33,8	96,2	16
203503200000010	32	40	1 610	96	PSL-32-10	1 005	41,6	118	24,1
